What Does IML Process Mean?

Explore the In-Mold Labeling (IML) process: a precision manufacturing method integrating printed labels into plastic products during molding. Learn about robotic placement (±0.1mm accuracy), 800-1,200 bar pressure bonding, scratch-resistant finishes, and EU-compliant recyclability for packaging/automotive/medical applications.

IML Process

Understanding In-Mold Labeling Technology

The In-Mold Labeling (IML) process is an advanced manufacturing technique that integrates decorative labels directly into plastic products during molding. Widely used in packaging, automotive, and consumer goods industries, this method eliminates post-production labeling while enhancing product durability.

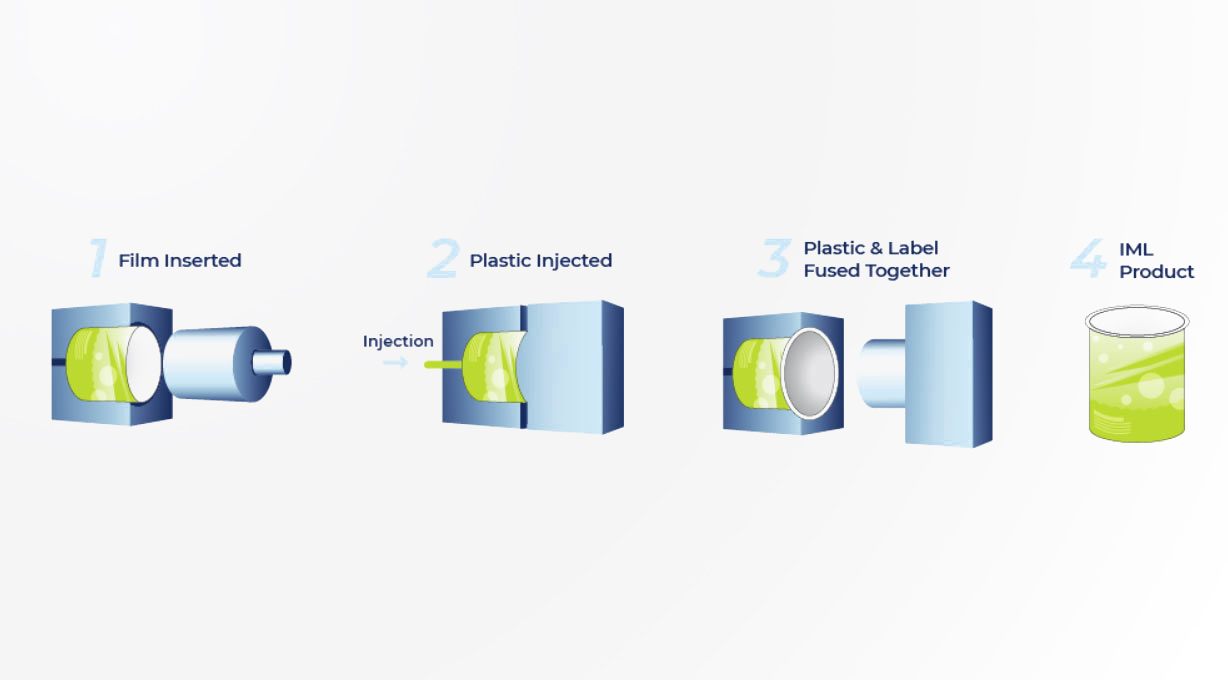

Key Stages of IML Manufacturing

  • Label Preparation: Printed polyester or polypropylene labels are precision-cut using laser die-cutting (±0.1mm tolerance)
  • Mold Integration: Labels are robotically positioned in injection molds with 0.05mm placement accuracy
  • Injection Molding: Molten polymer (typically PP/ABS at 200-260°C) bonds labels to substrates under 800-1,200 bar pressure
  • Demolding: Automated extraction systems with ≤0.5s cycle times ensure production efficiency

Technical Advantages of IML

Compared to traditional labeling methods, IML offers:

  • Scratch-resistant surfaces (≥4H pencil hardness)
  • 360° wrap-around decoration capabilities
  • Chemical resistance to detergents (pH 2-12 compatibility)
  • Recyclability meeting EU 94/62/EC standards

Industry Applications

Major implementations include:

  • Food containers with direct microwave-safe labeling
  • Automotive interior panels with textured finishes
  • Medical device packaging with sterile barriers
  • Consumer electronics with anti-fingerprint surfaces

Frequently Asked Questions

How does IML differ from IMD?

While both are in-mold decoration techniques, IML uses pre-printed films, whereas In-Mold Decoration (IMD) employs transfer-printed foils for 3D surface effects.

What's the minimum production volume?

Modern IML systems achieve cost-effectiveness at ≥50,000 units due to tooling optimization algorithms.
